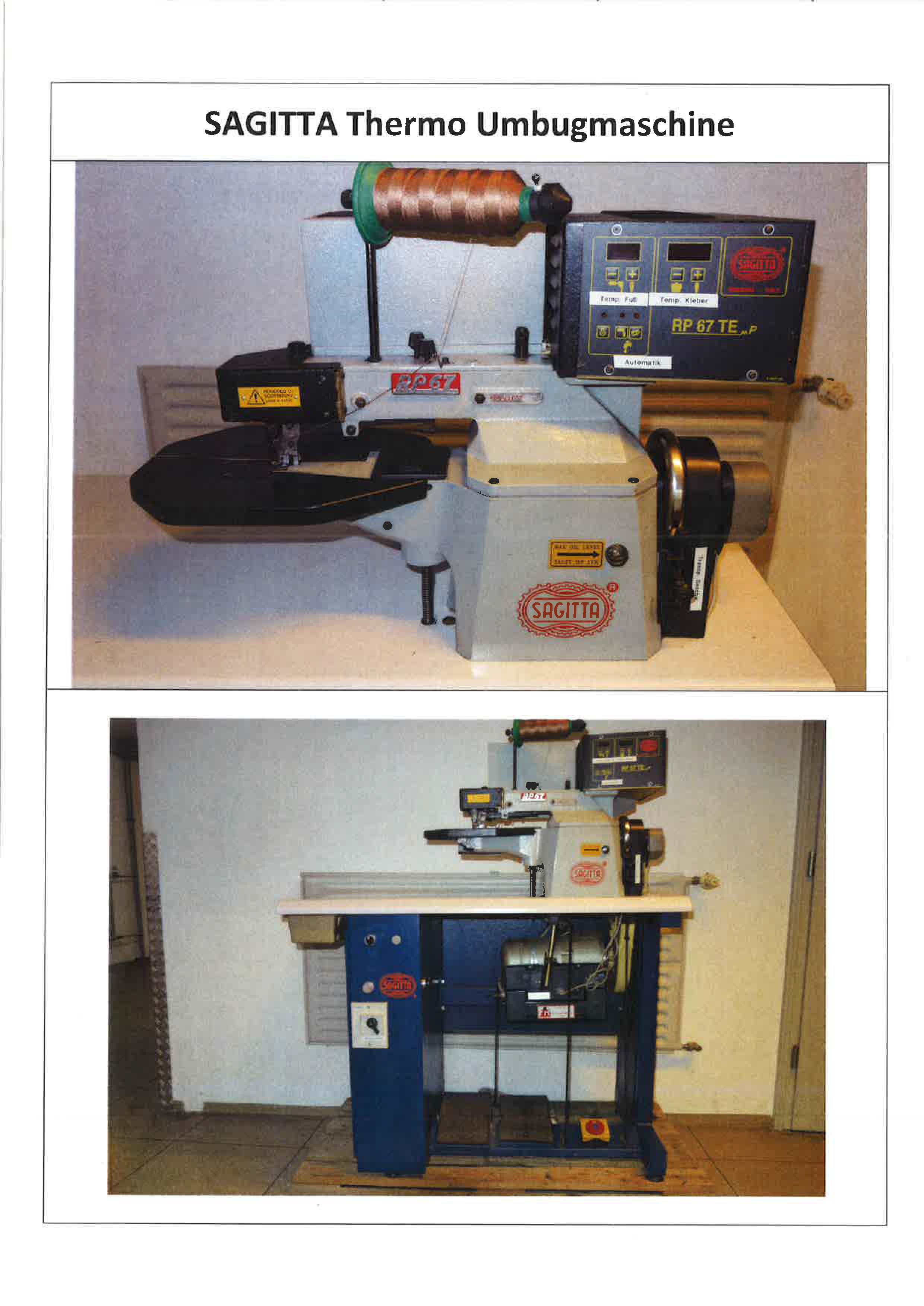

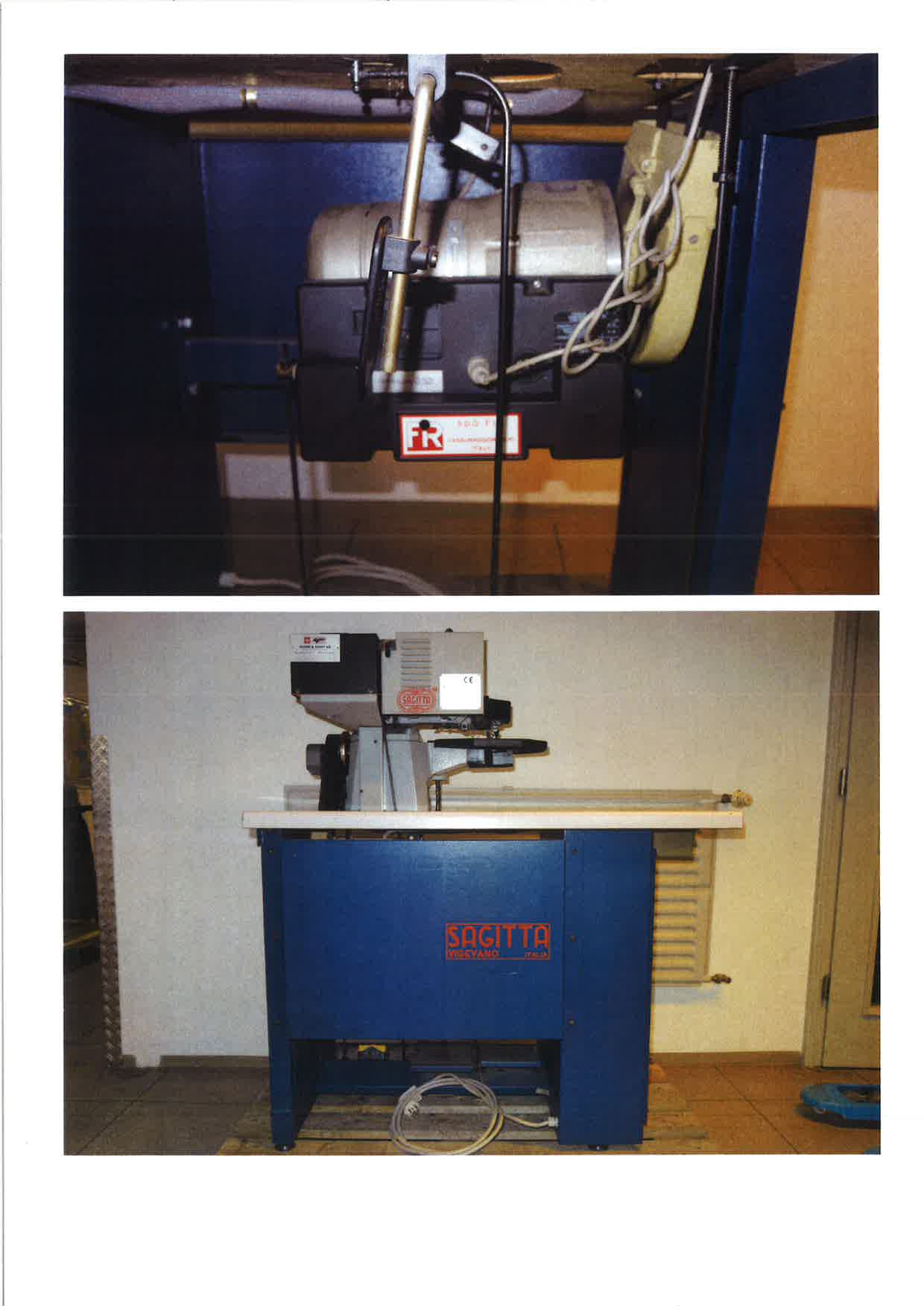

Upper thermocementing and folding machine, complete with table and motor with automatic positioning.
Automatic controls by photocells:
– Cement flow with programmable delay
– Feeding for external curves with programmable delay according with the speed and automatic cutting with adjustable step
– Easy selection of photosensor according of the geometry of the working leather uppers

Technical specifications
Adjustable speed from 0 to 2500 rpm.
Adjustable working feed from 0,5 to 6 mm.
Folding width: 3.2 / 4/5 mm.
Absorbed power max. 0,7 kW
Power supply three-phase 400 Volt 50/60 Hz
Permanent oil bath lubrication system

Machine dimensions cm. 110 x 55 x 130 h.
Machine weight Kg 137
