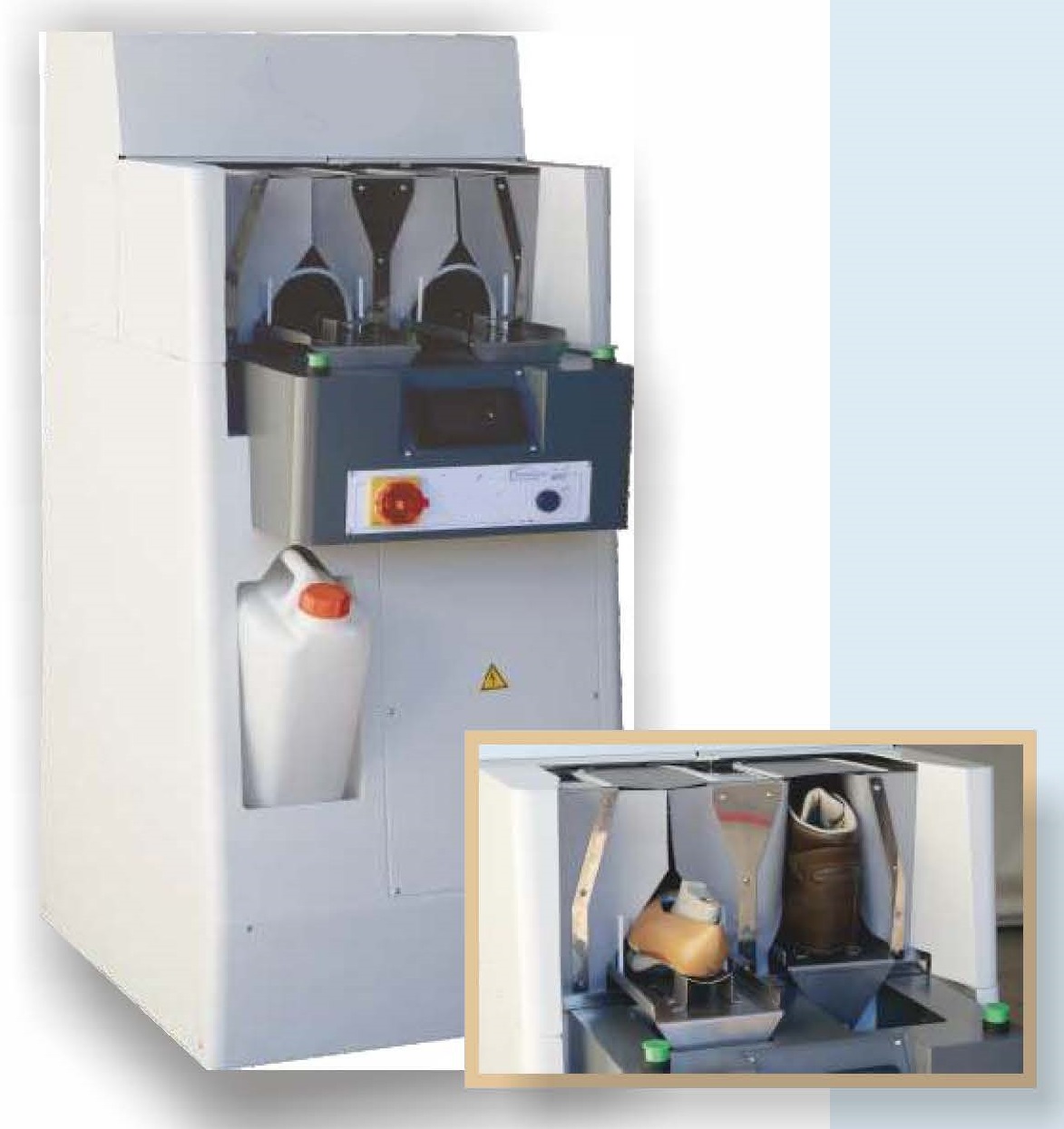

S200 SIECK Modell DA-RC Humidifier two station with extra pressing form in the toe part,  that in one operation allows to
soften the upper and the tip with direct injection of
steam under pressure and at the same time, by means
of heated pressers, to form the tip by thermally bonding
the lining to the thermoplastic toe-end, thus reducing
production times considerably .
All humidification, heating and pressing operations can
be managed independently and simultaneously.
This humidifier groups in one machine all the operations
necessary for the preparation of the upper to be
assembled : soften the tip, the sides, the back and
thermoform the toe-end - brandnew Production  Height Widht Depth Weight Elec. Supply 1400 p. / 8h
145 cm.
60 cm.
74 cm.
160 kg.
400V./ 50Hz 3PH
Elec. Power
Working Press.
10200 W.
Bar 6
